مضخة شيوان تيار مستمر SY-DHF26-15-72-1100 15M 2

☀️ Solar Pump

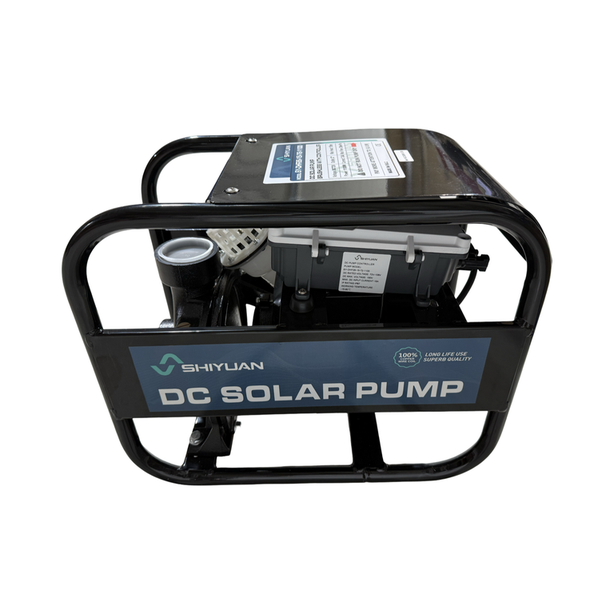

A brushless solar-powered pump with an integrated controller, providing reliable and efficient performance in agricultural and hydroponic solar systems.

🔧 Technical Specifications:

🔹 Model: SY-DHF26-15-72-1100

🔹 Voltage: DC 72V

🔹 Power: 1100W

🔹 Current: 7.8A

🔹 Maximum Pumping Height: 15 meters

🔹 Maximum Water Flow Rate: 26 m³/h

🔹 Pump Outlet: 2 inches (2″)

🔹 ⚠️ Do not operate the pump without water (FORBID WORKING EMPTY)

✅ Features and Benefits:

🔹 Operates efficiently with 4 solar panels, each with a power of 250W (approximately 1000W total)

🔹 Easy to connect and operate thanks to the diagram shown below the label

🔹 Ideal for irrigating farmland, filling tanks, or drawing water from shallow wells

🔹 Durable construction Corrosion-resistant and brushless motor for long service life

🔹 Equipped with a dry-run warning system

🔌 Wiring diagram (below the label):

The image shows the connection of 4 solar panels (250W each) in series to the controller and then directly to the pump – simplifying installation and ensuring efficient operation.
