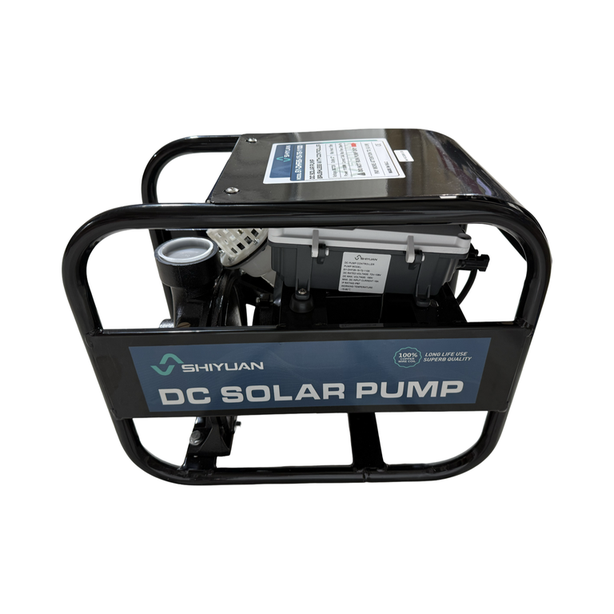

Shiwan SY-DHF26-15-72-1100 DC Solar Water Pump 2 Inch 15M

☀️ Solar Water Pump

A brushless solar-powered pump with a built-in controller, delivering reliable and efficient performance in agricultural and water solar systems.

1. 🔹 Model: SY-DHF26-15-72-1100
2. 🔹 Voltage: DC 72V
3. 🔹 Power: 1100 W
4. 🔹 Current: 7.8 A
5. 🔹 Maximum head: 15 metres
6. 🔹 Maximum flow: 26 m³ per hour
7. 🔹 Pump outlet: 2 inch (2″)
8. 🔹 ⚠️ FORBID WORKING EMPTY — never run the pump without water

1. 🔹 Works efficiently with 4 solar panels of 250 W each (approx. 1000 W total)
2. 🔹 Easy to connect and operate thanks to the diagram shown below the label
3. 🔹 Ideal for irrigating farmland, filling tanks, or drawing water from shallow wells
4. 🔹 Corrosion-resistant body and brushless motor for long service life
5. 🔹 Includes a dry-running protection warning

🔌 Wiring diagram (below the label): the image shows 4 solar panels (250 W each) connected in series to the controller and then directly to the pump — simplifying installation and ensuring efficient operation.
